Configuration

Komlog Access Configuration

Once komlogd file and directory structure is initialized, as explained at First execution, is time to proceed to komlogd configuration so it can communicate with Komlog.

User and RSA Key Configuration

To access Komlog we need to set username and RSA key in komlogd configuration file (komlogd.yaml).

The username is set with this key:

- username: <username>

Replacing <username> with our Komlog username.

komlogd RSA key is generated during the first execution, and placed in $HOME/.komlogd/key.priv by default. komlogd will use this key for the authentication process. However, if we want to store the key in another file, or use another key, we should set the following key:

- keyfile: <path_to_key.priv>

Replacing <path_to_key.priv> with the filename and full path of our key.

Note

komlogd private key will never be sent to Komlog.

komlogd authorization

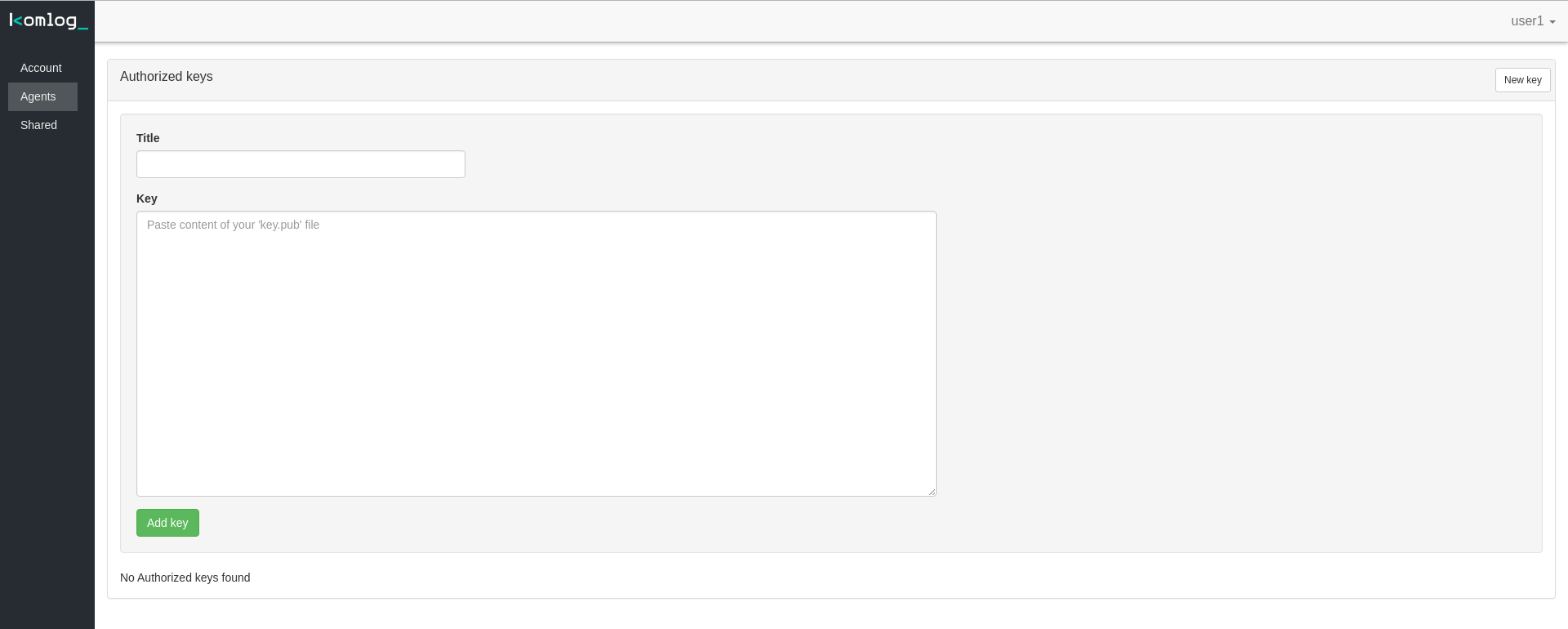

You have to add komlogd’s public key to the list of authorized keys so that komlogd can succeed in the authentication process. To do it, follow these steps:

  • Access configuration page with your Komlog user.
  • Go to Agents menu and click New Agent button.
  • A form will be shown with two fields. The first one is to set the name of the agent, and the second one to paste the contents of its public key. You can find the public key in file $HOME/.komlogd/key.pub.
_images/new_key.png

Scheduled jobs configuration

komlogd lets you schedule periodic jobs and send its outputs to Komlog. This functionality allows you to see commands or scripts outputs on Komlog web, identify variables directly on the texts, share them to other users, etc.

Supose we want to send to Komlog the result of executing the command df -k every hour.

To accomplish that, we should add to komlogd’s configuration file (komlogd.yaml) the following job block:

- job:
    uri: system.info.disk
    command: df -k
    enabled: yes
    schedule:
        - '0 * * * *'

A job block is defined with the following parameters:

  • uri: the identifier associated with this job’s data.

Its like a path in user’s data. Every user in Komlog can organize her time series in a structure like a filesystem. To identify each element in the structure we use what we call the uri.

We can nest our information in different levels using the dot character (.) For example, if we have uris system.info.disk, system.info.disk.sda1 and system.info.disk.sda2, Komlog will nest them this way:

system
└─ info
   └─ disk
      ├─ sda1
      └─ sda2

Important

An uri can be formed only with this characters:

  • Capital or lowercase letters [A-Za-z]: ASCII characters from A to z.

  • Numbers [0-9].

  • Special characters:

    • Hyphen (-), underscore (_)
    • Dot (.)

An uri cannot start with dot (.).

  • command: The command to execute.

Can be an operating system command or any script. komlogd will send the command/script standard output to Komlog.

Important

The command parameter cannot contain special command line characters like pipes (|) or redirections (<,>). If you need them, create a script and include the command there.

  • enabled: To enable or disable the job. Can take values yes or no.

  • schedule: Sets the job execution schedule. Uses the classical UNIX cron format:

    ┌───────────── minutes (0 - 59)
│ ┌────────────── hours (0 - 23)
│ │ ┌─────────────── day of month (1 - 31)
│ │ │ ┌──────────────── month (1 - 12)
│ │ │ │ ┌───────────────── day of week (0 - 6) (sunday - saturday)
│ │ │ │ │
│ │ │ │ │
│ │ │ │ │
* * * * *

It accepts these special characters:

  • Asterisk (*) to set every possible value of a group.
  • Comma (,) to enumerate different values in a group.
  • Slash (/) to set values of a division with zero remainder. So, for example, insted of setting minutes to 0,10,20,30,40,50 you can set */10.

The schedule parameter accepts as many elements as you need.

Every job block creates an independent process to manage the job execution, so they don’t block each other. However, for security reasons, komlogd will not execute more than one instance of each job in parallel, so if you have a job that takes 10 minutes to complete and it is scheduled to execute every 5 minutes, the schedule will not be fulfilled.

Loading jobs from external files

You can tell komlogd to load jobs configuration from an external file instead of adding them directly to komlogd.yaml.

To achieve this:

  1. Enable the external load option in komlogd.yaml:

    - allow_external_jobs: yes

  2. For each file, add an entry in komlogd.yaml like this one:

    - external_job_file: <path_to_file>

Replacing <path_to_file> with the file’s path. You can add as many external_job_file statements as you need.

Impulse methods configuration

Komlog allows the user to subscribe to any of his uris and receive notifications when new data is received on them.

An impulse method is the function that is executed when komlogd receives notifications about subscribed uris.

With impulse methods you can automate tasks, generate alarms, communicate with external services, analyze data in real time, and basically any task associated to events.

On chapter Impulse methods we explain how to create this type of functions.

To add a file with impulse methods to komlogd configuration we use the impulses block:

- impulses:
    enabled: yes
    filename: <path_to_file>

The impulses block parameters are:

  • enabled: To enable or disable the block. Can take values yes or no.
  • filename: Path to the impulses methods file. Path can be absolute or relative to the komlogd configuration directory.

You can add as many impulses blocks as you need.

Log configuration

komlogd logs configuration is stablished with the logging block in the configuration file. It has these default values:

- logging:
    level: INFO
    rotation: yes
    max_bytes: 10000000
    backup_count: 3
    dirname: log
    filename: komlogd.log

logging block parameters are:

  • level: Sets the log level. Posible values are CRITICAL, ERROR, WARNING, INFO, DEBUG, NOTSET.
  • rotation: Indicates if log file will be rotated when its size reaches max_bytes bytes. It accepts values yes or no.
  • max_bytes: If log rotation is enabled, log file will be rotated when it reaches the size in bytes indicated by this parameter.
  • backup_count: Number of log rotated files to keep on disk.
  • dirname: Log file directory. Path can be absolute or relative to komlogd configuration directory.
  • filename: log file name.

Once komlogd is configured, we can start it by executing the following:

komlogd &
